Fischer Precision Barographs and Barograph Accessories
The Navigator's Choice This model has been popular with Available from: |
THE NAVIGATOR'S CHOICE |
|||||||
Accuracy Chart graduation |
||||||||
Housing made of cast aluminum and chrome steel; white finish Movement brass and steel, with flat chrome finish Glazing made of transparent synthetic material Dimensions |
||||||||
Select clockwork option | ||||||||
Model 225 | Mechanical wind-up clockwork. Runs in 2 modes: daily or weekly |
|||||||
Model 225Q | Quartz clockwork. Runs in 3 modes: daily, weekly, and monthly |
|||||||
Please indicate the measuring range in your order. Standard is 955 - |
||||||||
Add vibration-damped movement for use at sea |
||||||||
Model 227 | Mechanical wind-up clockwork Runs in 2 modes: daily or weekly |
|||||||
Model 227Q | Quartz clockwork. Runs in 3 modes: daily, weekly, and monthly |
|||||||
Fixed measuring range 955 - |
||||||||
This is the most popular model Available from: |

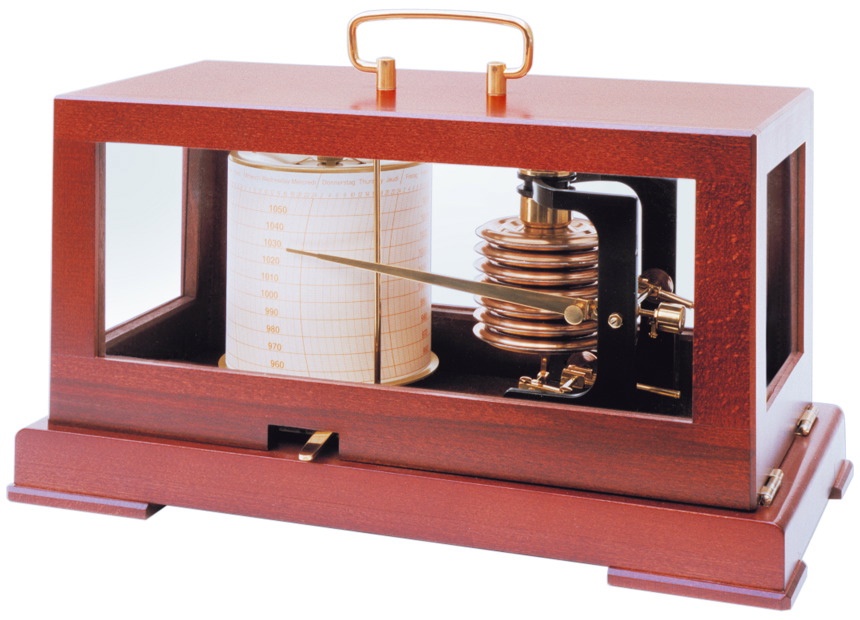

THE CAPTAIN'S CHOICE |
|||||||
Accuracy Chart graduation |
||||||||
Housing made of beech hardwood with a mahogany stain finish Note choice of movement finishes (compare Captain and Pilot) Dimensions |
||||||||
Select clockwork option | ||||||||
Model 205M | Mechanical wind-up clockwork. Runs in 2 modes: daily or weekly Movement brass and steel, with flat chrome finish |
|||||||
Model 205MQ | Quartz clockwork. Runs in 3 modes: daily, weekly, and monthly Movement brass and steel, with flat chrome finish |
|||||||
Model 285M | Mechanical wind-up clockwork. Runs in 2 modes: daily or weekly Movement polished brass |
|||||||
Model 285MQ | Quartz clockwork. Runs in 3 modes: daily, weekly, and monthly Movement polished brass |
|||||||
Please indicate the measuring range in your order | ||||||||
Add vibration-damped movement for use at sea | ||||||||
Model 207M | Mechanical wind-up clockwork. Runs in 2 modes: daily or weekly Movement brass and steel, with flat chrome finish |
|||||||
Model 207MQ | Quartz clockwork. Runs in 3 modes: daily, weekly, and monthly Movement brass and steel, with flat chrome finish |
|||||||
Model 287M | Mechanical wind-up clockwork. Runs in 2 modes: daily or weekly Movement polished brass |
|||||||
Model 287MQ | Quartz clockwork. Runs in 3 modes: daily, weekly, and monthly Movement polished brass |
|||||||
Fixed measuring range 955 - |
||||||||
An Exhibition Class barograph Available from: |

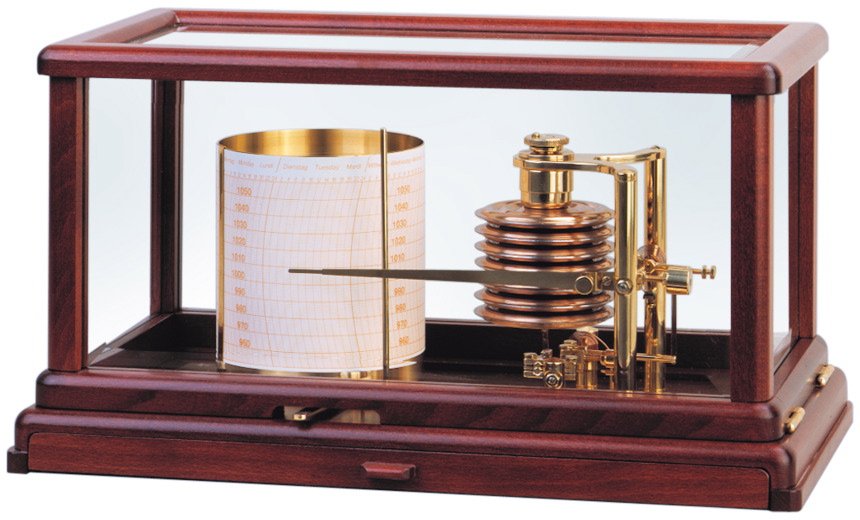

THE ADMIRAL'S CHOICE |
|||||||
Accuracy Chart graduation |
||||||||
Housing made of beech hardwood with a mahogany stain finish Glazing faceted float glass (cut glass with edge bevel) Base plate and movement of polished brass; includes drawer for charts and pens Dimensions |
||||||||
Select clockwork option | ||||||||
Model 265M | Mechanical wind-up clockwork. Runs in 2 modes: daily or weekly |
|||||||
Model 265MQ | Quartz clockwork. Runs in 3 modes: daily, weekly, and monthly |
|||||||
Please indicate the measuring range in your order | ||||||||
Add vibration-damped movement for use at sea | ||||||||
Model 267M | Mechanical wind-up clockwork. Runs in 2 modes: daily or weekly |
|||||||
Model 267MQ | Quartz clockwork. Runs in 3 modes: daily, weekly, and monthly |
|||||||
Fixed measuring range 955 - |
||||||||
Aneroid barographs are used to measure and record the history of atmospheric pressure. The measuring element in our barographs is a set of 7 aneroid capsules with a diameter of 62 mm. This set is manufactured of a copper-beryllium alloy that essentially eliminates age-hardening, hysteresis, and elastic after effects that could otherwise degrade the accuracy. The influence of temperature on the set of aneroid capsules and the transmission system is compensated by use of bimetal components over the full measuring range and for temperatures between -30 to +40 °C (-22 to 104 °F). All contacts in the movements are jeweled to reduce friction. Fischer barographs are used by navies and weather services, worldwide. Fischer instruments are unique in offering an option on each model with enhanced dampening for barograph use at sea. After you chose your model and timing option, the extra dampening can be selected. There is no need for this option for land based operations. The paper charts are the same size for all models: 92mm tall by 302 mm long. Charts marked in inches of mercury are also available on request.
|
||||||||
|
